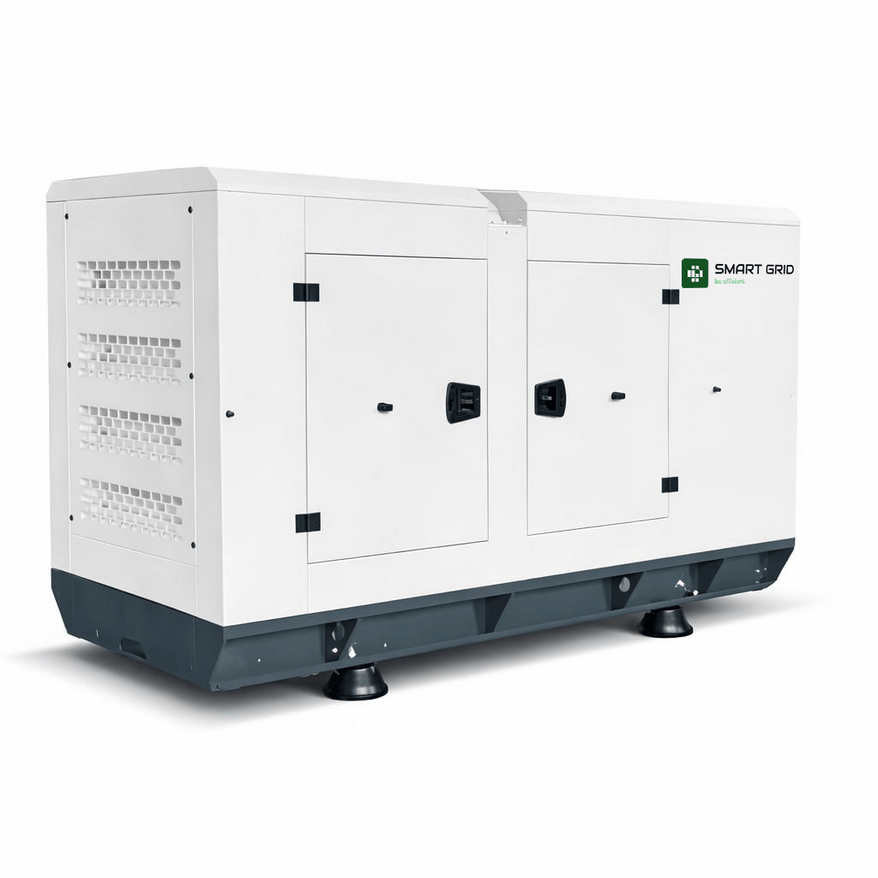

90 kVA diesel generator [66 kW rated power] BAUDOUIN

Manufacturer: Smart Grid Code: DG-B90
736382 ₴
The website indicates the approximate cost of the equipment in the basic configuration, subject to 100% prepayment. The final cost is formed individually and depends on the selected configuration, additional options, payment terms, warranty package, the need for delivery, installation and commissioning work.
In stock
Place an order
Buy this item with 1 click
Technical documentation
Delivery
By courier By courier within Ukraine price/free
Pickup Pickup from the warehouse price/free
novaPoshta Via Nova Poshta to the branch at the carrier's rates
Payment
proicons_bank Checking account

Description

The BAUDOUIN 90 kVA [66 kW rated power] diesel generator is a modern power generation unit designed to provide a stable power supply to facilities with medium to high power consumption. The model is suitable for use in industry, the commercial sector, agricultural operations, warehouse complexes, and construction sites.

The unit is powered by a BAUDOUIN diesel engine, which is known for its reliability, durability, and ability to withstand heavy loads over extended periods. Such engines are frequently used in generator sets due to their optimal balance of power, fuel efficiency, and operational stability.

The rated power of 66 kW (90 kVA) ensures a stable power supply to the facility’s main systems and auxiliary equipment without voltage drops. This makes the unit an effective solution for both backup and primary power supply.

The generator delivers a stable output voltage, which is particularly important for sensitive electronics and production processes where even brief interruptions can lead to downtime or losses.

The unit’s design is engineered for long-term operation, efficient cooling, and protection of key components, which positively impacts the equipment’s overall service life and reduces maintenance costs.

The company sells generators throughout Ukraine, including Kyiv, offering favorable terms of cooperation and competitive prices in the power equipment market. This allows for selecting the optimal solution tailored to the specific needs of a business or private facility.

Model advantages:

• rated power 66 kW / 90 kVA;

• reliable BAUDOUIN engine;

• stable operation under load;

• economical diesel fuel consumption;

• can be used as a primary or backup power source;

• suitable for industrial and commercial facilities;

• resistance to load fluctuations;

• long service life and simple maintenance.

Pricing policy

The website indicates the approximate cost of the equipment in the basic configuration, subject to 100% prepayment. The final cost is formed individually and depends on the selected configuration, additional options, payment terms, warranty package, the need for delivery, installation and commissioning work.

Specifications

Manufacturer Smart Grid
Fuel type Diesel
Number of phases 3
Frequency, Hz 50
Rated power, kVA/kW 82/66
Maximum power, kVA/kW 90/72
Engine power, kW 72/80
Fuel consumption (100/75/50%), l/h 18,8 / 13,5 / 9,1
Power factor 0.8
Operating mode Basic/Backup
IP rating 23
Overload protection Yes
Short-circuit protection Yes
Warranty period 12 months/1,000 op. hours
Condition New
Pre-start warm-up Yes
ATS input Yes

Engine

Engine brand BAUDOUIN
Engine displacement, cc 4087
Engine oil capacity, l 14
Engine speed, rpm 1500
Number of cylinders 4
Engine cooling system Liquid
Coolant volume, l 17,9

Dimensions

Length, mm 2650
Width, mm 1100
Height, mm 1750
Weight, kg 1258
Fuel tank capacity, l 265
