Description

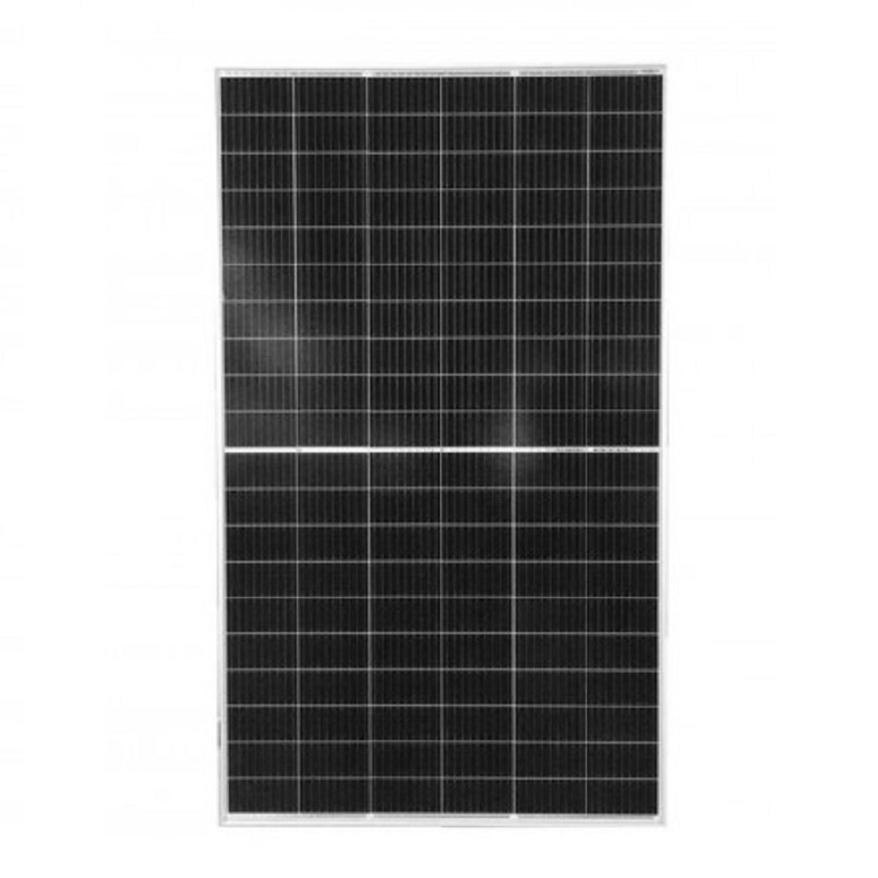

LONGI LR5-54HIH 415M Solar Panel is a high-efficiency monocrystalline photovoltaic module from the Hi-MO 5 series, developed using advanced Half-Cell and PERC technologies. The panel provides stable power generation, high conversion efficiency, and a long service life, making it an excellent choice for residential, commercial, and industrial solar power systems.
With a rated power output of 415 W and a module efficiency of 21.3%, the panel enables maximum utilization of roof or ground installation space. Half-Cell technology reduces power losses, improves performance under partial shading, and lowers the module's operating temperature, resulting in higher overall energy production.
Durable tempered anti-reflective glass, an anodized aluminum frame, and a high-protection junction box ensure excellent resistance to mechanical loads, harsh weather conditions, and long-term outdoor operation. The panel complies with modern international quality and reliability standards.
Key Advantages:
- Rated power: 415 W
- Monocrystalline Half-Cell solar cells
- PERC technology
- High module efficiency of 21.3%
- Improved performance under partial shading
- Low temperature coefficient
- Tempered anti-reflective glass
- Durable anodized aluminum frame
- High resistance to wind and snow loads
- Long service life
Technical Specifications
| Specification | Value |
|---|---|
| Model | LONGI LR5-54HIH 415M |
| Panel Type | Monocrystalline |
| Technology | Half-Cell, PERC |
| Rated Power (Pmax) | 415 W |
| Module Efficiency | 21.3% |
| Voltage at Maximum Power (Vmp) | 31.49 V |
| Current at Maximum Power (Imp) | 13.18 A |
| Open Circuit Voltage (Voc) | 37.50 V |
| Short Circuit Current (Isc) | 13.94 A |
| Number of Cells | 108 (6×18) |
| Dimensions | 1722 × 1134 × 30 mm |
| Weight | 20.8 kg |
| Frame | Anodized Aluminum |
| Front Glass | Tempered Glass, 3.2 mm |
| Protection Rating | IP68 |
| Applications | Residential, commercial, and industrial solar power systems |
