Description

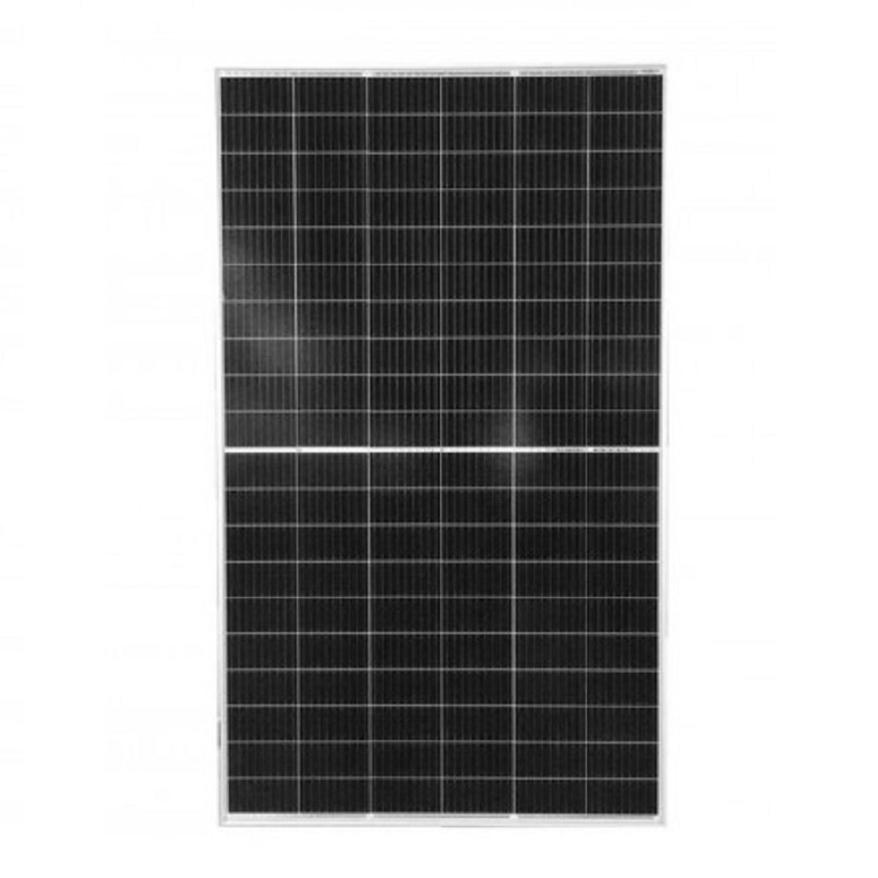

Tiger Neo N-type 54HL4R-B 435W ALL BLACK is a modern premium-class high-efficiency monocrystalline solar panel developed using N-type technology to deliver maximum performance and minimal degradation throughout its service life. The module combines high efficiency, a stylish all-black design, and reliable operation for residential and commercial photovoltaic power systems.
The panel features a rated power output of 435 W and utilizes Half-Cell technology, which improves performance under partial shading and reduces power losses. Thanks to its N-type cell technology, the module provides more stable energy generation, enhanced PID resistance, and a longer service life compared to conventional P-type panels.
The Dual Glass construction with tempered glass on both sides provides additional mechanical strength and reliable protection against moisture, dust, and mechanical stress. The fully black ALL BLACK design gives the panel an elegant appearance, making it especially suitable for residential rooftop photovoltaic systems where aesthetics are important.
Key Advantages:
- Rated power 435 W
- N-type (Tiger Neo) technology
- Fully black ALL BLACK design
- Half-Cell construction for improved efficiency
- Dual tempered glass (Dual Glass)
- High PID resistance
- Low power degradation
- Improved performance under low-light conditions
- High mechanical strength
- Suitable for residential, commercial, and industrial photovoltaic power systems
Technical Specifications
| Specification | Value |
|---|---|
| Model | Tiger Neo 54HL4R-B 435W |
| Brand | Jinko Solar |
| Panel Type | Monocrystalline, N-type |
| Rated Power | 435 W |
| Cell Construction | Half-Cell |
| Module Construction | Dual Glass |
| Design | ALL BLACK |
| Number of Cells | 108 (54 Half-Cells) |
| Maximum System Voltage | 1500 V DC |
| Module Efficiency | Up to ~22% |
| Frame | Black Anodized Aluminum |
| Front/Rear Surface | Tempered Glass |
| Junction Box | IP68 |
| Operating Temperature | -40°C to +85°C |
| Application | Residential, commercial, and industrial photovoltaic power systems |
