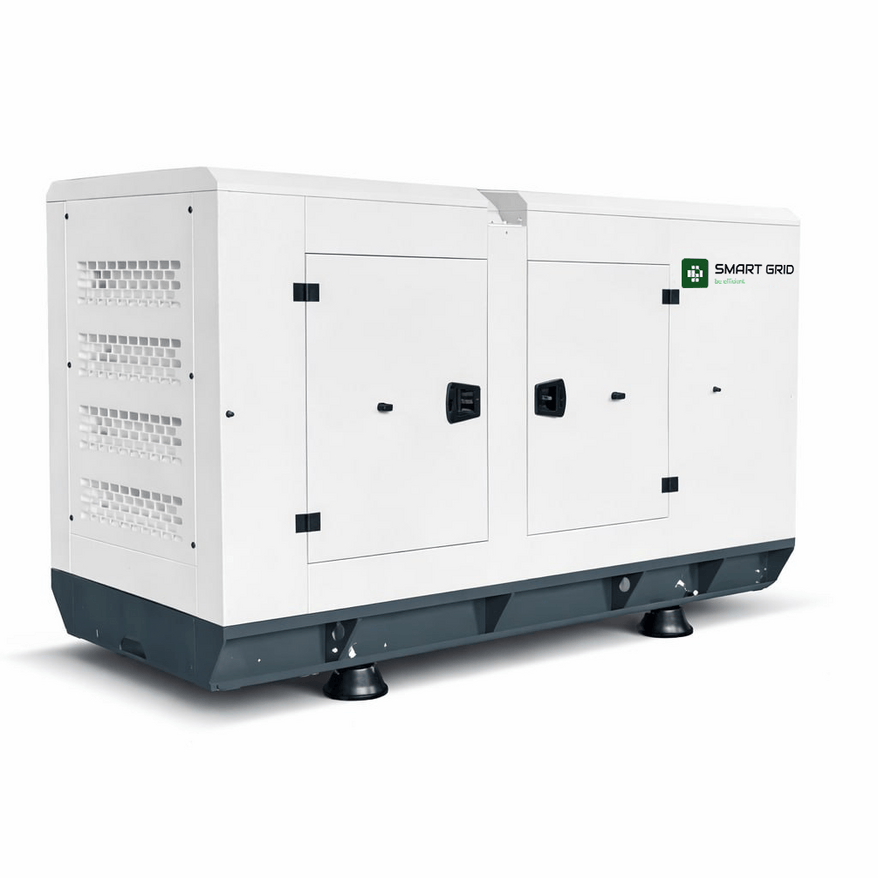

275 kVA diesel generator [200 kW rated power] BAUDOUIN

Manufacturer: Smart Grid Code: DG-B275-LS
1553872 ₴
The website indicates the approximate cost of the equipment in the basic configuration, subject to 100% prepayment. The final cost is formed individually and depends on the selected configuration, additional options, payment terms, warranty package, the need for delivery, installation and commissioning work.
In stock
Place an order
Buy this item with 1 click
Technical documentation
Delivery
By courier By courier within Ukraine price/free
Pickup Pickup from the warehouse price/free
novaPoshta Via Nova Poshta to the branch at the carrier's rates
Payment
proicons_bank Checking account

Description

275 kVA (200 kW) diesel generator powered by a BAUDOUIN engine is an efficient solution for providing standby or prime power to industrial enterprises, manufacturing facilities, logistics centers, medical institutions, commercial buildings, and construction sites. The generator combines high performance, fuel efficiency, and reliable operation even under continuous heavy loads.

With a rated power output of 200 kW (275 kVA), the generator can be used as either a primary or backup power source for facilities with high energy demand. The unit is equipped with an AVR (Automatic Voltage Regulator), supports ATS (Automatic Transfer Switch) connection for automatic startup during power outages, and features an efficient liquid cooling system that ensures stable, reliable, and long-lasting operation.

Pricing policy

The website indicates the approximate cost of the equipment in the basic configuration, subject to 100% prepayment. The final cost is formed individually and depends on the selected configuration, additional options, payment terms, warranty package, the need for delivery, installation and commissioning work.

Specifications

Manufacturer Smart Grid
Fuel type Diesel
Number of phases 3
Frequency, Hz 50
Rated power, kVA/kW 250/200
Maximum power, kVA/kW 275/220
Engine power, kW 264
Fuel consumption (100/75/50%), l/h 57.2
Power factor 0.8
Operating mode Basic/Backup
IP rating 23
Overload protection Yes
Short-circuit protection Yes
Warranty period 12 months/1,000 op. hours
Condition New
Pre-start warm-up Yes
ATS input Yes

Engine

Engine brand BAUDOUIN
Engine displacement, cc 9720
Engine oil capacity, l 26
Engine speed, rpm 1500
Number of cylinders 6
Engine cooling system Liquid
Coolant volume, l 40

Dimensions

Length, mm 3500
Width, mm 1300
Height, mm 2600
Weight, kg 2722
Fuel tank capacity, l 375
