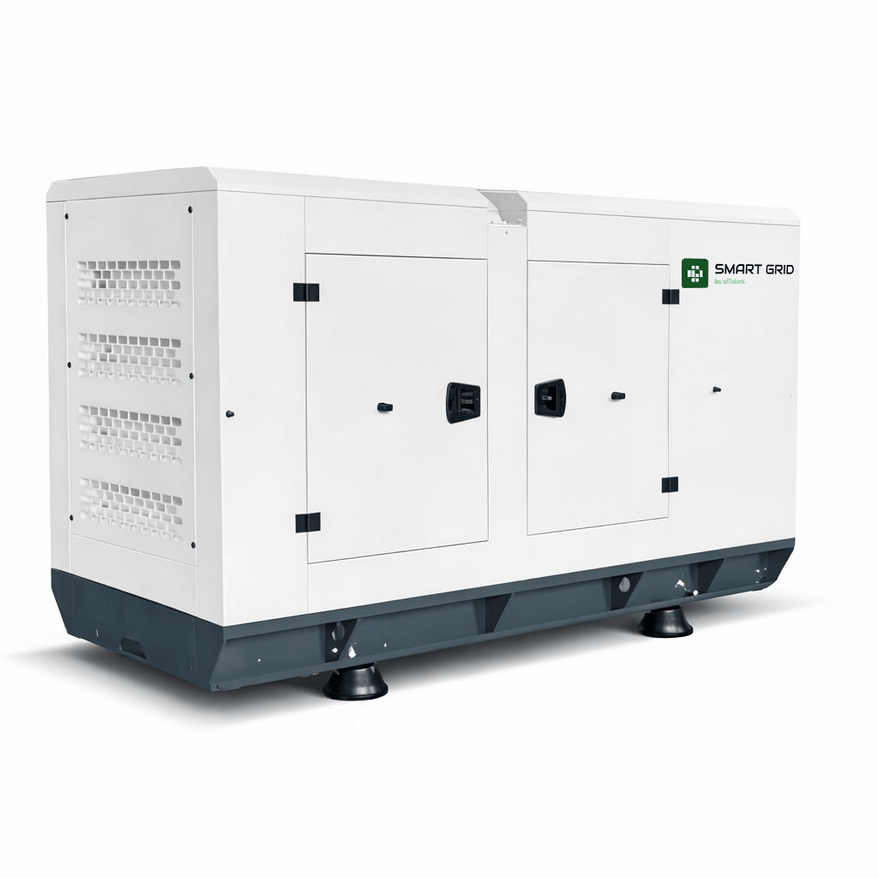

500 kVA diesel generator [400 kW rated power] BAUDOUIN

Manufacturer: Smart Grid Code: DG-B500
2660046 ₴
The website indicates the approximate cost of the equipment in the basic configuration, subject to 100% prepayment. The final cost is formed individually and depends on the selected configuration, additional options, payment terms, warranty package, the need for delivery, installation and commissioning work.
In stock
Place an order
Buy this item with 1 click
Technical documentation
Delivery
By courier By courier within Ukraine price/free
Pickup Pickup from the warehouse price/free
novaPoshta Via Nova Poshta to the branch at the carrier's rates
Payment
proicons_bank Checking account

Description

500 kVA (400 kW) diesel generator powered by a BAUDOUIN engine is a powerful and reliable solution for providing standby or prime power to industrial enterprises, manufacturing facilities, logistics centers, medical institutions, data centers, and large commercial properties. The generator ensures stable operation under continuous heavy loads while combining high performance, fuel efficiency, and long service life.

With a rated power output of 400 kW (500 kVA), the generator can be used as either a primary or backup power source for facilities with high energy demand. The unit is equipped with an AVR (Automatic Voltage Regulator), supports ATS (Automatic Transfer Switch) connection for automatic startup during power outages, and features an efficient liquid cooling system that ensures reliable, stable, and continuous operation in a wide range of operating conditions.

Pricing policy

The website indicates the approximate cost of the equipment in the basic configuration, subject to 100% prepayment. The final cost is formed individually and depends on the selected configuration, additional options, payment terms, warranty package, the need for delivery, installation and commissioning work.

Specifications

Manufacturer Smart Grid
Fuel type Diesel
Number of phases 3
Frequency, Hz 50
Rated power, kVA/kW 450/360
Maximum power, kVA/kW 500/400
Engine power, kW 450/409
Fuel consumption (100/75/50%), l/h 110 / 80 / 55
Power factor 0.8
Operating mode Basic/Backup
IP rating 23
Overload protection Yes
Short-circuit protection Yes
Warranty period 12 months/1,000 op. hours
Condition New
Pre-start warm-up Yes
ATS input Yes

Engine

Engine brand BAUDOUIN
Engine displacement, cc 1254
Engine oil capacity, l 30
Engine speed, rpm 1500
Number of cylinders 4
Engine cooling system Liquid
Coolant volume, l 55

Dimensions

Length, mm 4400
Width, mm 1700
Height, mm 2960
Weight, kg 5352
Fuel tank capacity, l 1272
