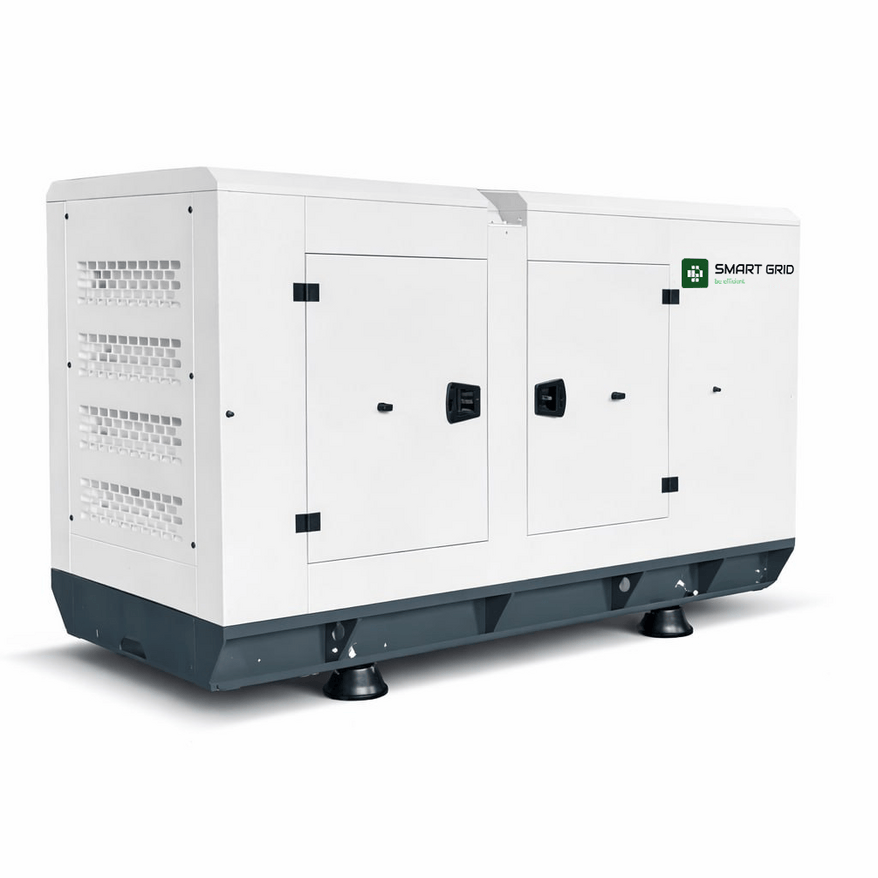

1000 kVA diesel generator [800 kW rated power] BAUDOUIN

Manufacturer: Smart Grid Code: DG-B1000
8308308 ₴
The website indicates the approximate cost of the equipment in the basic configuration, subject to 100% prepayment. The final cost is formed individually and depends on the selected configuration, additional options, payment terms, warranty package, the need for delivery, installation and commissioning work.
In stock
Place an order
Buy this item with 1 click
Technical documentation
Delivery
By courier By courier within Ukraine price/free
Pickup Pickup from the warehouse price/free
novaPoshta Via Nova Poshta to the branch at the carrier's rates
Payment
proicons_bank Checking account

Description

The 1000 kVA (800 kW) diesel generator powered by a BAUDOUIN engine is a high-performance solution for providing reliable standby or prime power to industrial facilities, manufacturing plants, data centers, healthcare institutions, logistics hubs, and other sites with high energy demands. The unit delivers stable performance under continuous heavy loads while combining high output, reliability, and fuel efficiency.

With a rated output of 800 kW (1000 kVA), the generator is suitable for use as either a primary or backup power source. The BAUDOUIN engine is renowned for its durability and dependable operation in demanding conditions. The generator is equipped with an Automatic Voltage Regulator (AVR), supports Automatic Transfer Switch (ATS) integration for automatic startup during power outages, and features an efficient liquid cooling system to ensure continuous and reliable operation even under challenging conditions.

Pricing policy

The website indicates the approximate cost of the equipment in the basic configuration, subject to 100% prepayment. The final cost is formed individually and depends on the selected configuration, additional options, payment terms, warranty package, the need for delivery, installation and commissioning work.

Specifications

Manufacturer Smart Grid
Fuel type Diesel
Number of phases 3
Frequency, Hz 50
Rated power, kVA/kW 900/720
Maximum power, kVA/kW 1000/800
Engine power, kW 902/820
Fuel consumption (100/75/50%), l/h 195 / 146 / 101
Power factor 0.8
Operating mode Basic/Backup
IP rating 23
Overload protection Yes
Short-circuit protection Yes
Warranty period 12 months/1,000 op. hours
Condition New
Pre-start warm-up Yes
ATS input Yes

Engine

Engine brand BAUDOUIN
Engine displacement, cc 1928
Engine oil capacity, l 109
Engine speed, rpm 1500
Number of cylinders 12
Engine cooling system Liquid
Coolant volume, l 191

Dimensions

Length, mm 5150
Width, mm 2200
Height, mm 3250
Weight, kg 10939
Fuel tank capacity, l 1928
