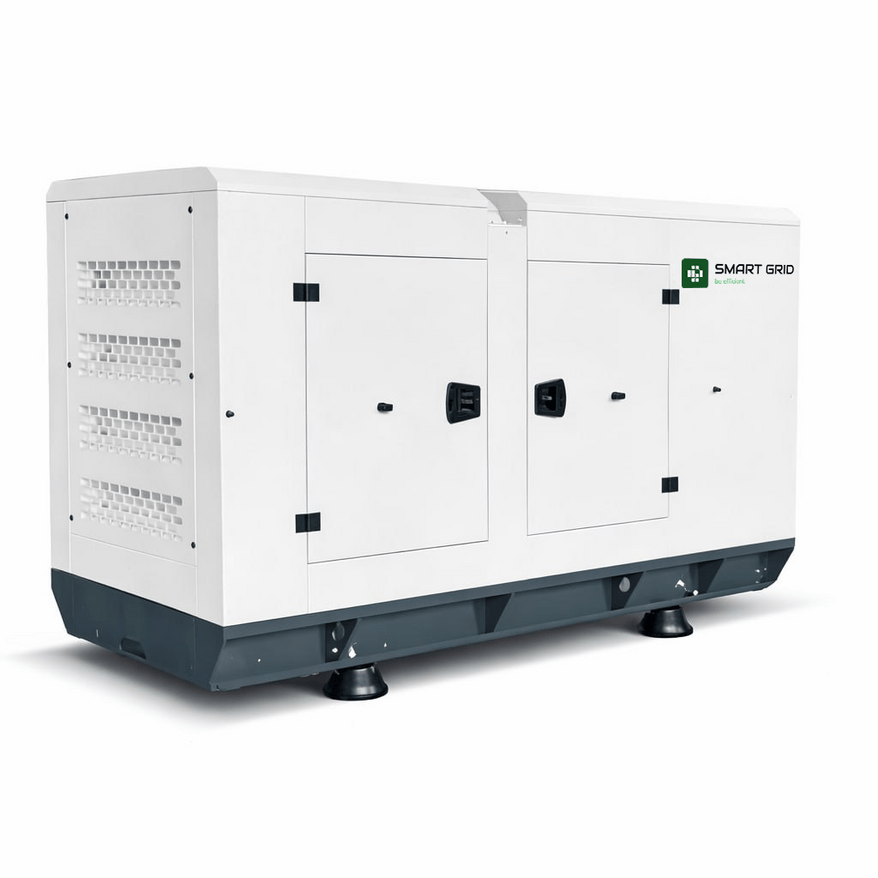

1120 kVA diesel generator [896 kW rated power] BAUDOUIN

Manufacturer: Smart Grid Code: DG-B1120
8560605 ₴
The website indicates the approximate cost of the equipment in the basic configuration, subject to 100% prepayment. The final cost is formed individually and depends on the selected configuration, additional options, payment terms, warranty package, the need for delivery, installation and commissioning work.
In stock
Place an order
Buy this item with 1 click
Technical documentation
Delivery
By courier By courier within Ukraine price/free
Pickup Pickup from the warehouse price/free
novaPoshta Via Nova Poshta to the branch at the carrier's rates
Payment
proicons_bank Checking account

Description

The 1120 kVA (896 kW) diesel generator powered by a BAUDOUIN engine is a high-performance power solution designed to provide reliable prime or standby electricity for industrial facilities, manufacturing plants, data centers, healthcare institutions, logistics hubs, and other energy-intensive sites. The generator combines high power output, exceptional reliability, and fuel efficiency, ensuring stable operation even under continuous heavy-duty loads.

With a rated output of 896 kW (1120 kVA), the unit is suitable for use as either a primary or backup power source for mission-critical applications. The BAUDOUIN engine is renowned for its durability, high performance, and dependable operation in demanding conditions. The generator is equipped with an Automatic Voltage Regulator (AVR), supports Automatic Transfer Switch (ATS) integration for automatic startup during power outages, and features an efficient liquid cooling system to ensure continuous and reliable operation over extended periods.

Pricing policy

The website indicates the approximate cost of the equipment in the basic configuration, subject to 100% prepayment. The final cost is formed individually and depends on the selected configuration, additional options, payment terms, warranty package, the need for delivery, installation and commissioning work.

Specifications

Manufacturer Smart Grid
Fuel type Diesel
Number of phases 3
Frequency, Hz 50
Rated power, kVA/kW 1020/816
Maximum power, kVA/kW 1120/896
Engine power, kW 973/889
Fuel consumption (100/75/50%), l/h 207 / 155/ 107
Power factor 0.8
Operating mode Basic/Backup
IP rating 23
Overload protection Yes
Short-circuit protection Yes
Warranty period 12 months/1,000 op. hours
Condition New
Pre-start warm-up Yes
ATS input Yes

Engine

Engine brand BAUDOUIN
Engine displacement, cc 1928
Engine oil capacity, l 109
Engine speed, rpm 1500
Number of cylinders 12
Engine cooling system Liquid
Coolant volume, l 191

Dimensions

Length, mm 5150
Width, mm 2200
Height, mm 3250
Weight, kg 11183
Fuel tank capacity, l 1928
