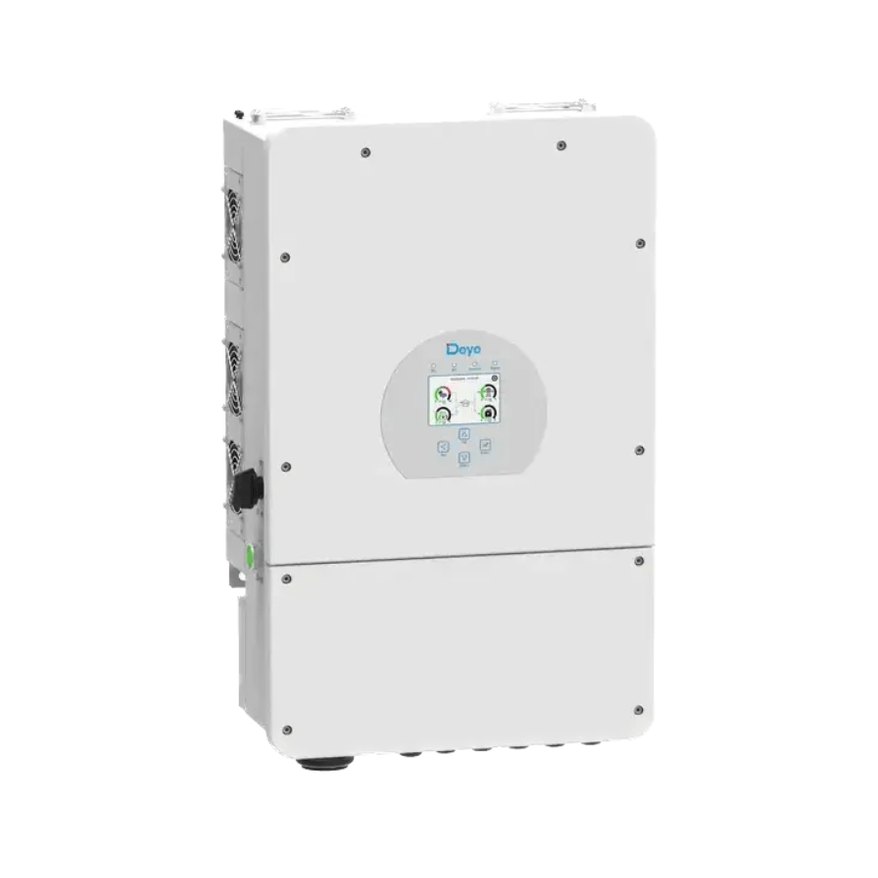

Hybrid Inverter SUN-08K-SG05LP1-EU Deye (8 kW, 1 Phase, 2 MPPT, LV)
The SUN-08K-SG05LP1-EU Deye hybrid inverter is a powerful, highly efficient, and versatile solution for building modern solar power systems with backup power capabilities. Supporting low-voltage batteries (40–60 V), dual MPPT trackers, and a wide range of intelligent energy management functions, this inverter ensures stable power generation, energy independence, and maximum flexibility under any operating conditions.
The model combines the functionality of a grid-tied, off-grid, and UPS inverter, supports generator integration, and allows scalable installations with parallel operation of up to 16 inverters. This makes the SUN-08K-SG05LP1-EU an excellent choice for private homes, businesses, residential communities, and commercial facilities.
Key Technical Specifications
Power Output & Grid Operation
- Rated output power: 8 kW
- Grid type: Single-phase (230 V)
- Supports both BACKUP and GRID outputs
- Pure sine wave output for safe operation of all electrical appliances
PV Input
- Number of MPPT trackers: 2
- PV string inputs: 2+2
- MPPT operating voltage range: 150–425 V
- Maximum PV open-circuit voltage: 500 V
- Maximum PV input power: up to ~11 kW (according to the product series)
- MPPT efficiency: >99%
Battery Compatibility
- Battery voltage: 40–60 V (Low Voltage)
- Compatible battery types: Li-ion, LiFePO₄, AGM, GEL
- Maximum charging current: up to 225 A (for 7–8 kW models)
- Three-stage intelligent charging: Bulk / Boost / Float
- BMS communication via CAN / RS485
Additional Features
- Parallel operation of up to 16 inverters (single-phase and three-phase configurations)
- Generator support with automatic start function (GV/GS dry contacts)
- Time-of-Use function with 6 programmable charge/discharge periods
- Zero Export function with CT sensor
- Compatible with AC-coupled grid-tied inverters
- Monitoring: Wi-Fi / LAN / GPRS / 4G (optional)
- Interfaces: RS485, RS232, CAN, DRM, parallel communication ports
Display & Control
The inverter is equipped with a touchscreen LCD display that allows users to:
- monitor real-time power flow;
- track PV generation, grid status, load, and battery operation;
- adjust system settings and operating modes;
- start the generator;
- view power charts and historical operating data.
Safety & Reliability
- Protection rating: IP65 (suitable for indoor and outdoor installation)
- Protection against:
✓ overload
✓ overheating
✓ short circuit
✓ reverse polarity
✓ overvoltage - Supports Type A RCD protection (recommended ≥300 mA)
Operating temperature: from –40°C to +60°C
Installation & Package Contents
- Convenient wall-mounted installation
- Package includes: mounting bracket, battery temperature sensor, magnetic rings, installation kit, parallel communication cable, and user manual.
Where Can the SUN-08K-SG05LP1-EU Deye Inverter Be Used?
The inverter is highly versatile and suitable for systems of various sizes and applications.
Private Homes
- Energy independence
- Battery energy storage
- Backup power with generator integration
- Supports heat pumps, air conditioners, and water heaters
Country Houses & Holiday Homes
- Complete energy independence
- Off-grid operation
- Supports gasoline and diesel generators
Offices, Shops & Business Centers
- Reliable backup power for IT equipment
- Parallel operation for higher system capacity
- Load management and energy cost optimization
Farms, Service Stations & Industrial Facilities
- Stable operation with inductive loads (pumps, compressors)
- 8 kW output enables reliable startup of demanding equipment
- Reduced electricity costs
Microgrids & Residential Communities
- Parallel connection of up to 16 inverters
- Flexible design of local energy systems
SUN-08K-SG05LP1-EU Deye is a high-performance and reliable hybrid inverter that combines advanced functionality, high output power, and flexible configuration options. It is an ideal solution for systems requiring maximum efficiency and reliable backup power.
