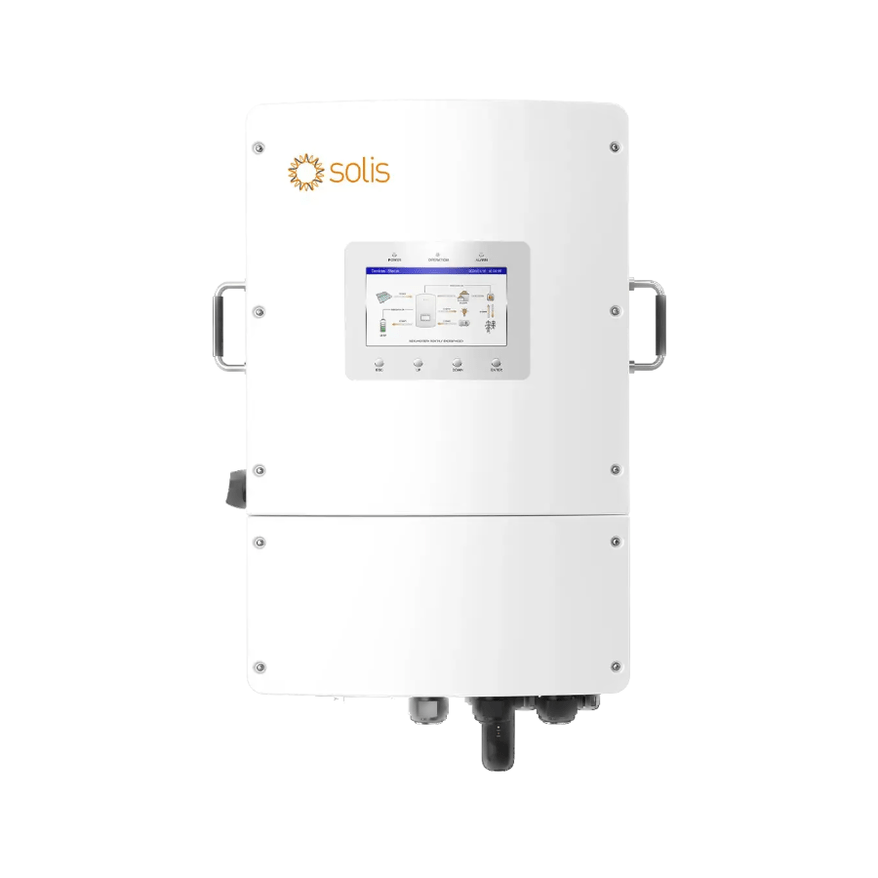

Hybrid Inverter S6-EH3P12K02-NV-YD-L Solis (12 kW, 3 Phase, 2 MPPT, LV)
Solis S6-EH3P12K02-NV-YD-L is a modern three-phase hybrid inverter with a rated power of 12 kW, designed for residential and commercial solar power systems with energy storage. It operates in both grid-tied and off-grid modes, providing a stable power supply even during complete grid outages.
The inverter supports low-voltage batteries (40–60 V), making it compatible with most popular LiFePO₄ battery systems. Equipped with 2 MPPT trackers and a high input current of up to 21 A per MPPT, it is ready to work with today's high-power photovoltaic modules.
Key Advantages:
- Supports photovoltaic arrays up to 160% of the rated inverter power
- Instant switching <10 ms between the grid and backup power
- 200% overload capability for 10 seconds in backup mode, ensuring reliable startup of pumps, compressors, and air conditioners
- Supports unbalanced three-phase loads (up to 50% of rated power per phase)
- Can operate entirely from solar panels and batteries (off-grid mode)
- Generator (GEN) connection with automatic control
- Parallel operation of up to 6 inverters
- Intelligent load management with configurable priorities
Main Technical Specifications:
- Rated power: 12 kW
- Number of phases: 3
- MPPT trackers: 2
- Maximum PV voltage: 1000 V
- MPPT voltage range: 200–850 V
- Battery types: Li-ion / LiFePO₄ / Lead-acid
- Maximum charge/discharge current: up to 250 A
- Efficiency: up to 97.5%
- Protection rating: IP66
- Cooling: Intelligent fan cooling
- Display: 7″ touchscreen + Bluetooth + SolisCloud
Equipment for comprehensive uninterrupted power supply solutions:
- Businesses and offices
- Manufacturing facilities and warehouses
- Retail stores and HoReCa
- Service stations, healthcare facilities, and critical infrastructure
Services provided:
- Installation and commissioning (priced separately depending on site conditions)
- Selection of customized system configurations according to your load requirements and technical specifications
- Engineering support and professional consultation
Purchase options:
- Direct contract
- Procurement through the Prozorro public procurement system
- Financing through bank loans and government support programs
Leave a request and we will:
- Select the optimal solution for your requirements
- Prepare a commercial proposal
- Provide recommendations for developing technical specifications based on the actual needs of your facility and available market solutions
