Description

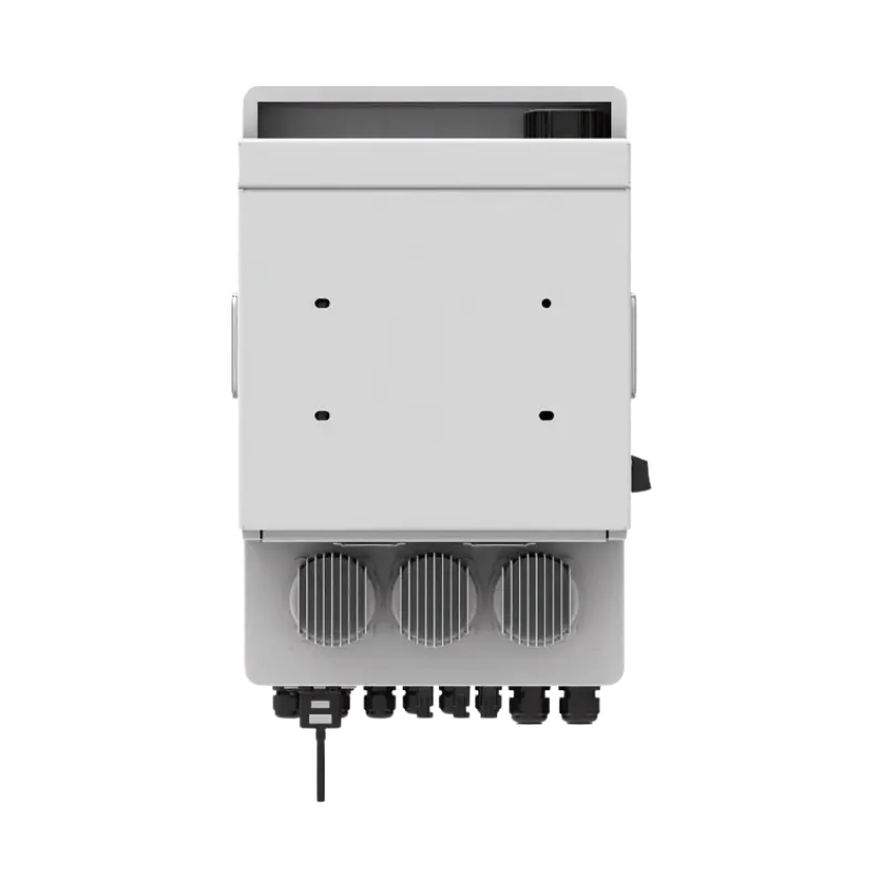

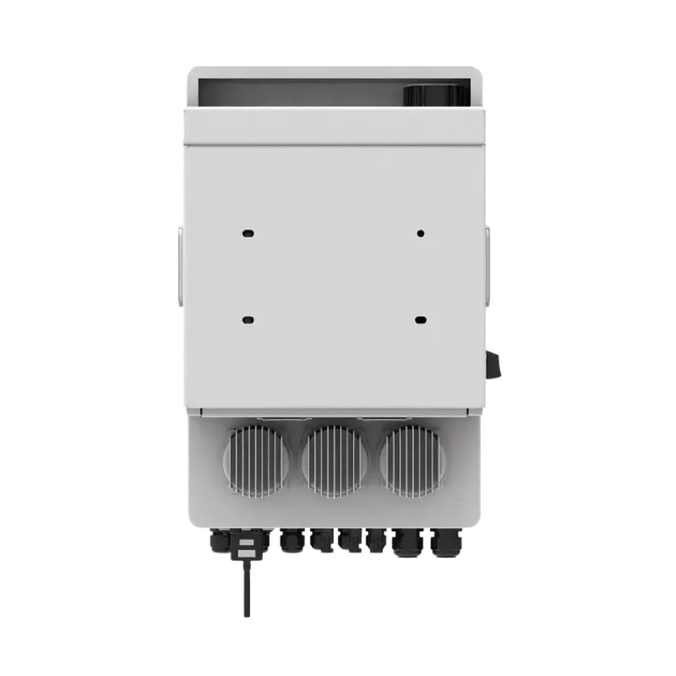

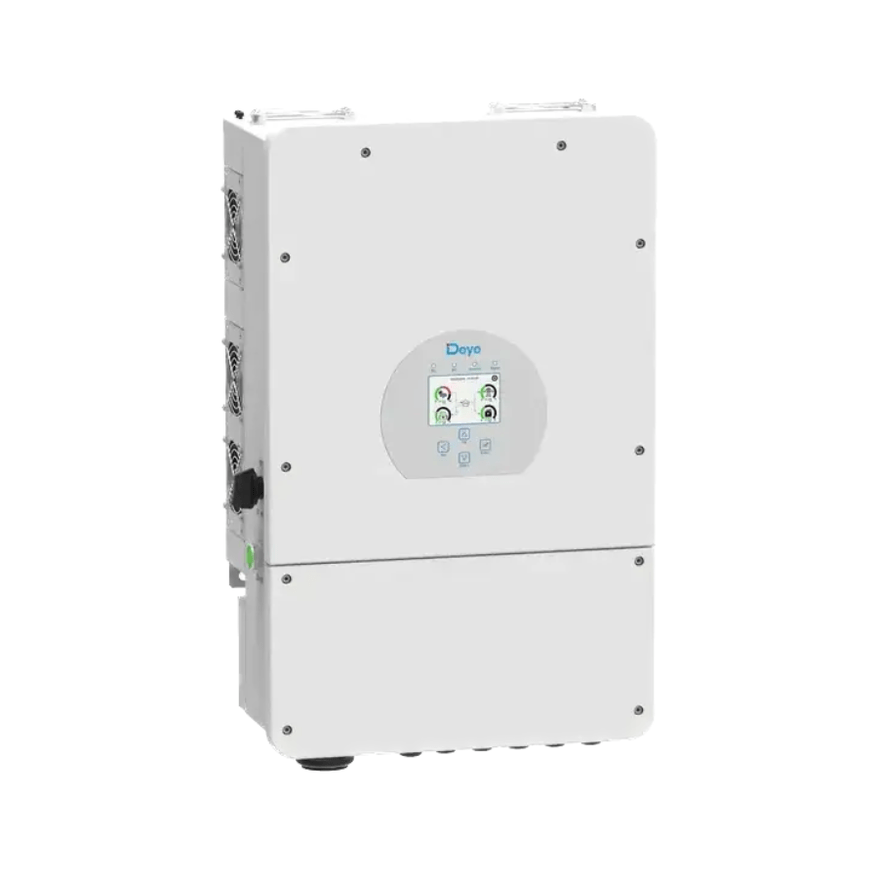

Hybrid Inverter Deye SUN-12K-SG02LP1-EU-AM3 WiFi (12 kW, 1 Phase, 3 MPPT, LV)
Deye SUN-12K-SG02LP1-EU-AM3 is a modern single-phase hybrid inverter with a rated power of 12 kW, designed for residential and commercial solar power systems. The device operates with 48 V low-voltage battery systems (LiFePO4 or lead-acid batteries), providing efficient energy management between solar panels, the utility grid, and battery storage.
The inverter is equipped with 3 independent MPPT trackers, allowing multiple PV strings to be connected and ensuring maximum energy generation even under varying sunlight conditions. Thanks to the built-in WiFi monitoring, users can remotely monitor system performance, view energy production, consumption, and battery status in real time.
The model supports UPS (backup power) operation, parallel connection of multiple inverters, and integration with a diesel generator. Its high efficiency and extensive functionality make this inverter an ideal solution for achieving energy independence.
Advantages of the Deye SUN-12K-SG02LP1-EU-AM3
- 12 kW output power for single-phase systems
- 3 independent MPPT trackers
- Support for 48 V low-voltage battery systems
- Built-in WiFi monitoring
- UPS (backup power) mode
- High efficiency of up to 97.6%
- Supports parallel operation of multiple inverters
- Compatible with LiFePO4 and lead-acid batteries
- Generator connection support
- IP65 protection rating
