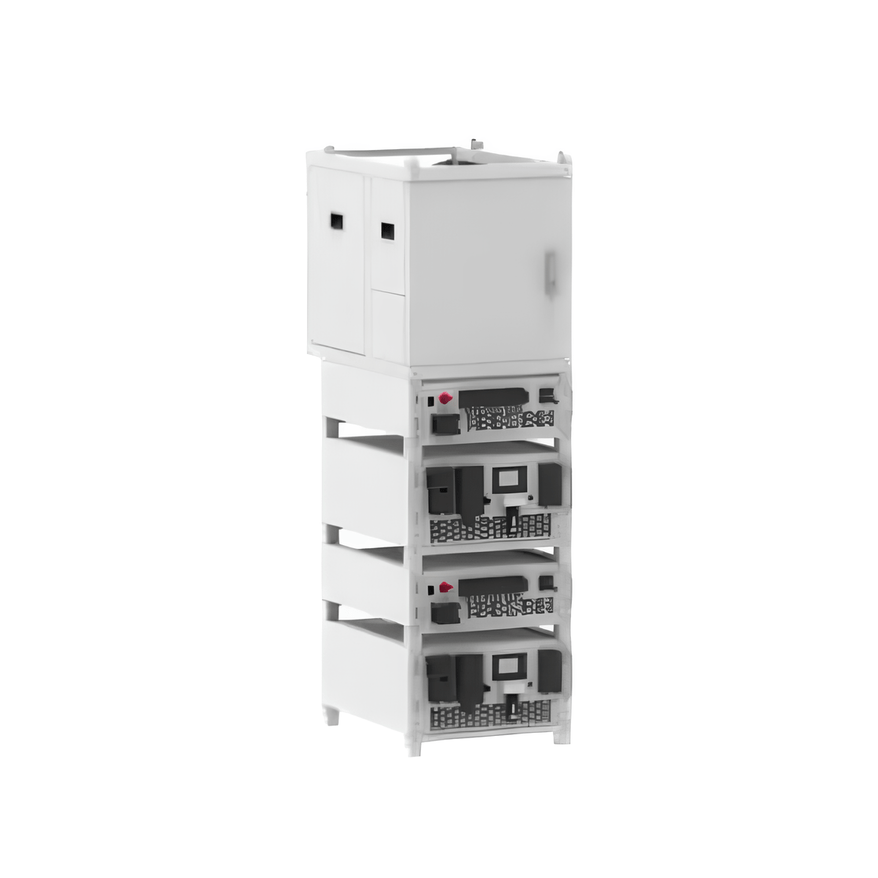

Hybrid Inverter Deye SUN-100K-PCSL01HP3 (100 kW, 3-Phase, HV, WiFi)
Deye SUN-100K-PCSL01HP3 Hybrid Inverter is a high-performance commercial and industrial energy module designed for large grid-connected, off-grid, and hybrid power systems. Thanks to its high-voltage battery range (630–1000 V), 100 kW output power, and support for energy storage systems of 215 kWh and larger, it is an ideal solution for factories, business centers, shopping malls, data centers, agricultural enterprises, and other facilities with high energy consumption.
The model belongs to the Deye C&I ESS (Commercial & Industrial Energy Storage System) series and can be integrated into scalable systems up to the megawatt class, combining PCS, MPPT modules, STS, and BOS-B battery clusters.
Key Advantages and Features
High-Voltage Energy Storage System
- Battery voltage range: 630–1000 V
- Battery type: Lithium-ion (LFP)
- Charging strategy: Automatic BMS adaptation
- Maximum charge/discharge current: 175 A
- Supports one HV battery input
BOS-B battery clusters provide 215 kWh per unit and can be expanded to dozens of racks within a single system.

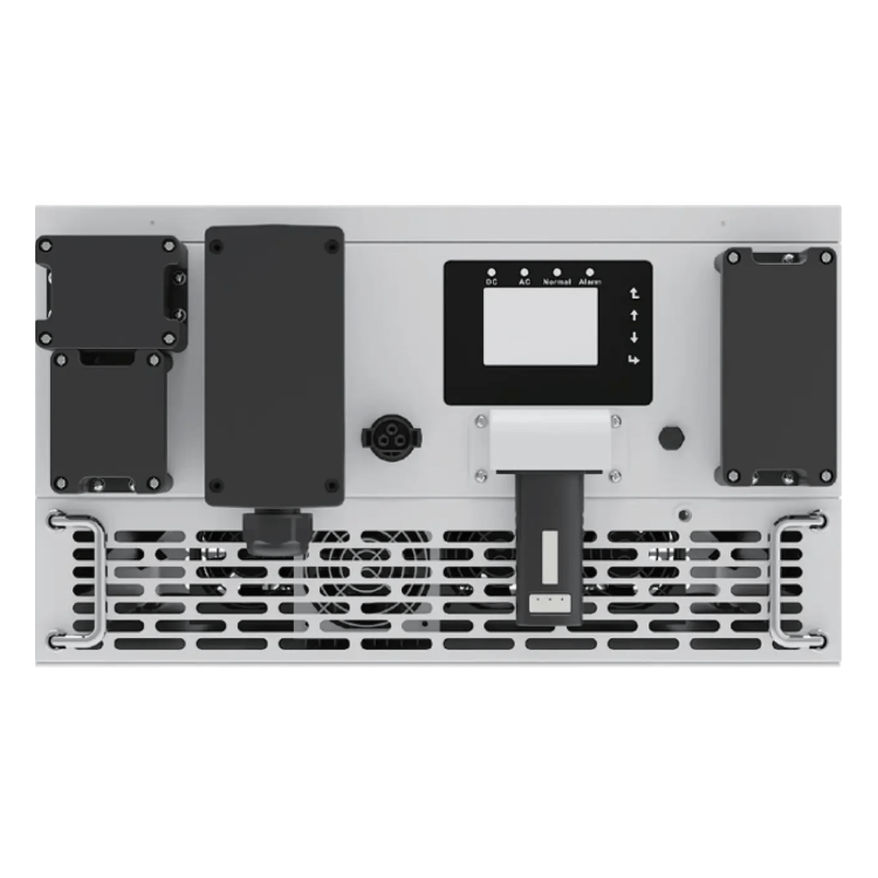

100 kW PCS (Power Conversion System)
- Rated active power: 100 kW
- Maximum apparent power: 110 kVA
- Rated AC current: 151.6 A
- Maximum current: 166.7 A
- PCS efficiency: up to 98.5%
- European efficiency: 97.8%
- THDi < 3%
- Power factor range: from -1 to +1
The PCS supports:
- Instantaneous power up to 110% of rated output;
- Transfer time <20 ms (via STS);
- Time-of-Use (ToU) energy management;
- Zero Export mode.
Integration with Solar PV Systems
With the MPPT module, the following features are available:
- Maximum PV power: up to 200 kW (depending on configuration)
- MPPT voltage range: 480–850 V
- Maximum PV voltage: 1100 V
- MPPT efficiency: >99%
- Support for multiple MPPT trackers
- Convenient connection of large PV arrays
STS – Fast Transfer Switch Module
- Typical operating modes: Grid / Off-grid / Diesel Generator
- Transfer time: <20 ms
- Each line (generator, load, grid) supports up to 500 kW

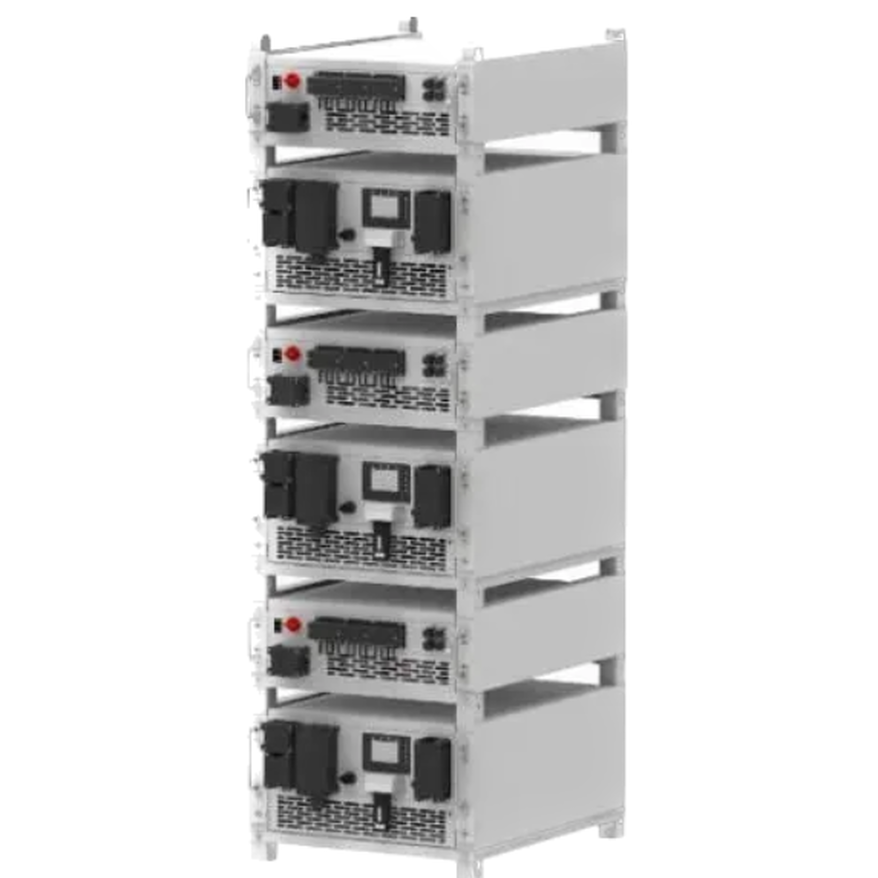

Supports parallel connection of:
- Up to 5 × 100 kW PCS units per STS
- Or systems up to 2.5 MW
Monitoring and Control
The inverter supports:
- Wi-Fi
- RS485
- CAN
- Meter/CT connection
- Deye Cloud platform
- Local color touchscreen display
Functions include:
- Remote control and firmware updates;
- Real-time monitoring;
- Energy production and consumption analytics;
- AI assistant (Deye Copilot).
Protection Features
Comprehensive protection includes:
- Short-circuit protection;
- Overload protection;
- Overvoltage protection (Type II for DC and AC);
- Thermal protection;
- Anti-islanding protection;
- Insulation monitoring;
- Residual current detection.
Complies with standards:
IEC 62477-1, IEC 61727, IEC 62116, EN 50549, G99, NRS 097, and others.
Operating Conditions
- Operating temperature: –40°C to +60°C (power derating above 45°C)
- Humidity: 0–95%
- Altitude: up to 4000 m
- Noise level: <75 dB
- Protection rating: IP65
- Cooling: Intelligent air cooling
PCS module dimensions: 543 × 310 × 775 mm
Weight: 70.35 kg

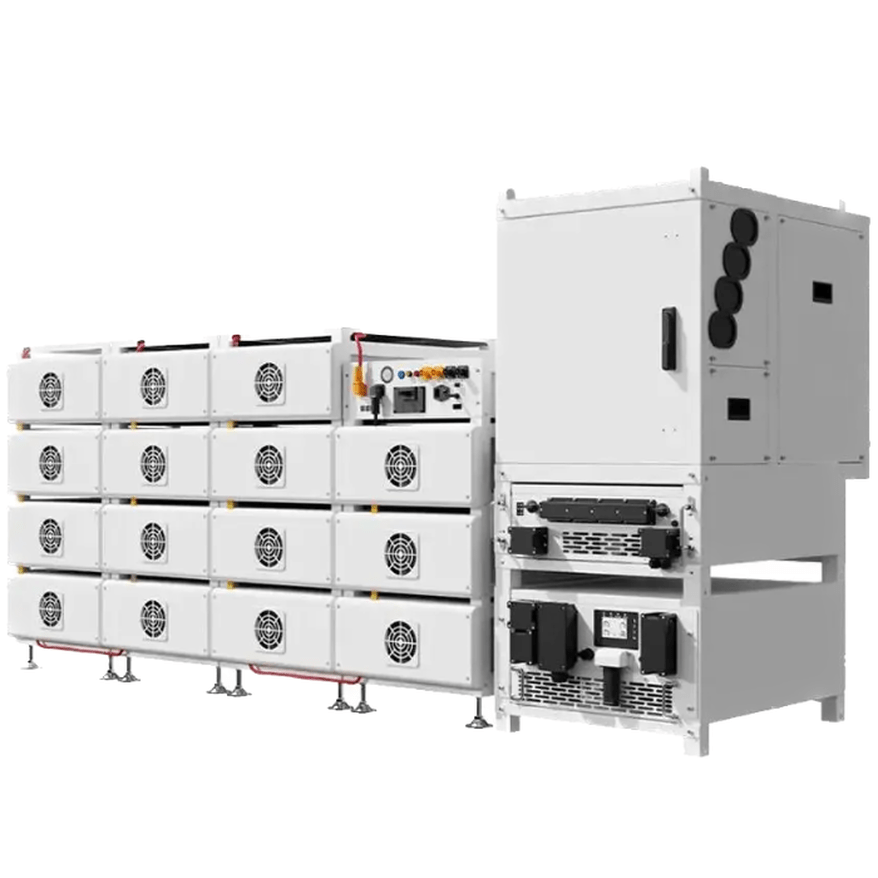

BOS-B 215 kWh System Features
- Modular design scalable up to megawatt-class systems;
- Smart BMS with full cell balancing;
- Backup power for up to 32 hours in multi-rack configurations;
- Intelligent cooling system;
- Up to 10 years of service life depending on configuration.
Applications of the SUN-100K-PCSL01HP3 Inverter
Suitable for:
- Industrial facilities
- Logistics centers
- Farms and agricultural complexes
- Retail chains
- Medical institutions
- Data centers
- Municipal facilities
- Microgrids and autonomous energy systems
Deye SUN-100K-PCSL01HP3 is a professional 100 kW hybrid inverter designed for high-load industrial energy systems. It combines advanced power conversion technology, modular architecture, scalability, outstanding efficiency, and remote management capabilities, making it an ideal choice for large-scale commercial solar power plants and energy storage systems.
Equipment for a comprehensive uninterrupted power supply solution:
- Businesses and offices
- Manufacturing facilities and warehouses
- Retail stores and HoReCa
- Service stations, healthcare, and infrastructure facilities
Services provided:
- Installation and commissioning (priced separately depending on site conditions)
- Selection of customized system configurations for specific loads and technical requirements
- Engineering support and professional consulting
How to purchase:
- Direct contract
- Through the Prozorro procurement system
- Through credit and government financing programs
Submit a request, and we will:
- Select the optimal solution for your requirements
- Prepare a commercial proposal
- Provide recommendations for developing technical specifications based on actual project needs and available market solutions
