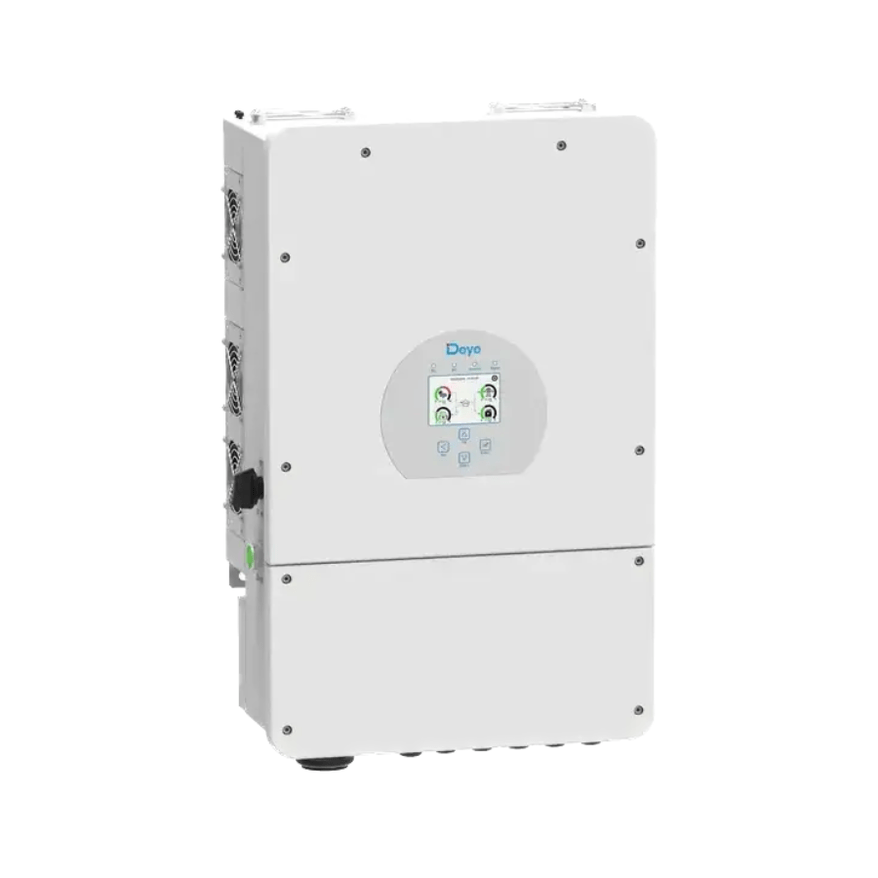

Hybrid Inverter SUN-50K-SG01HP3-EU-BM4 Deye WiFi (50 kW, 3-Phase, 4 MPPT, HV)
Hybrid Inverter SUN-50K-SG01HP3-EU-BM4 Deye WiFi (50 kW, 3-Phase, 4 MPPT, HV) is a powerful energy management solution designed for large industrial and commercial facilities, as well as large residential systems with high demands for reliability and efficiency. Thanks to its advanced technical specifications, this inverter ensures optimal use of renewable energy sources while providing a reliable backup power supply.
The SUN-50K-SG01HP3-EU-BM4 Deye WiFi Hybrid Inverter supports high-voltage lithium-ion battery systems with an operating voltage range of 450 V to 850 V, ensuring high system performance and safety. The maximum charge and discharge current is 100 A, allowing rapid energy storage and delivery for heavy loads. The device automatically adapts to BMS systems, improving battery management efficiency.
The inverter features four independent MPPT trackers, enabling the connection of multiple PV arrays or solar panels with different characteristics. This significantly improves energy harvesting even under uneven lighting conditions. The maximum DC input power is 65,000 W, while the maximum DC input voltage reaches 1000 V. The MPPT operating range is 450–850 V.
The SUN-50K-SG01HP3-EU-BM4 Deye WiFi Hybrid Inverter delivers a rated output power of 50,000 W and a maximum output power of 55,000 W. With support for parallel connection of up to 10 units, it enables the creation of scalable energy systems tailored to the requirements of large facilities. The inverter also supports energy storage from diesel generators, providing additional reliability during emergency situations.
The inverter achieves a maximum conversion efficiency of 97.6%, ensuring minimal energy losses. European efficiency reaches 97.0%, while MPPT efficiency is as high as 99.9%. The unit operates within a wide temperature range of -40°C to +60°C, with automatic power derating above 45°C.
The inverter's protection system includes anti-islanding protection, overload protection, short-circuit protection, overvoltage protection, reverse PV polarity protection, insulation resistance monitoring, and residual current detection. With an IP65 protection rating, the device is suitable for operation in humid and dusty environments.
The SUN-50K-SG01HP3-EU-BM4 Deye WiFi Hybrid Inverter is equipped with RS485 and CAN communication interfaces for integration with other system components and remote monitoring. The built-in WiFi module enables remote management and monitoring through mobile applications or a web interface.
The unit is wall-mounted and features compact dimensions of 527 × 894 × 294 mm with a weight of 80 kg. It comes with a 5-year warranty, extendable to 10 years, confirming its reliability and long service life.
The SUN-50K-SG01HP3-EU-BM4 Deye WiFi Hybrid Inverter (50 kW, 3-Phase, 4 MPPT, HV) is a powerful and reliable solution for building high-performance autonomous and hybrid energy systems. Its versatility and flexible configuration make it an ideal choice for ensuring uninterrupted power supply and maximizing the use of renewable energy.
Equipment for comprehensive uninterrupted power supply solutions:
- Businesses and offices
- Manufacturing facilities and warehouses
- Retail stores and HoReCa
- Service stations, medical facilities, and infrastructure projects
Services provided:
- Installation and commissioning (priced separately depending on site conditions)
- Selection of alternative system configurations for specific loads and technical requirements
- Engineering support and professional consultation
How to purchase:
- Direct contract
- Through the Prozorro public procurement system
- Through credit and government financing programs
Leave a request, and we will:
- Select the optimal solution for your needs
- Prepare a commercial proposal
- Provide recommendations for developing the technical specification based on the actual requirements of your facility and available market solutions
Backup power system for business, autonomous energy supply, turnkey backup power solution, energy solution for enterprises, battery and inverter energy storage system.
