Description

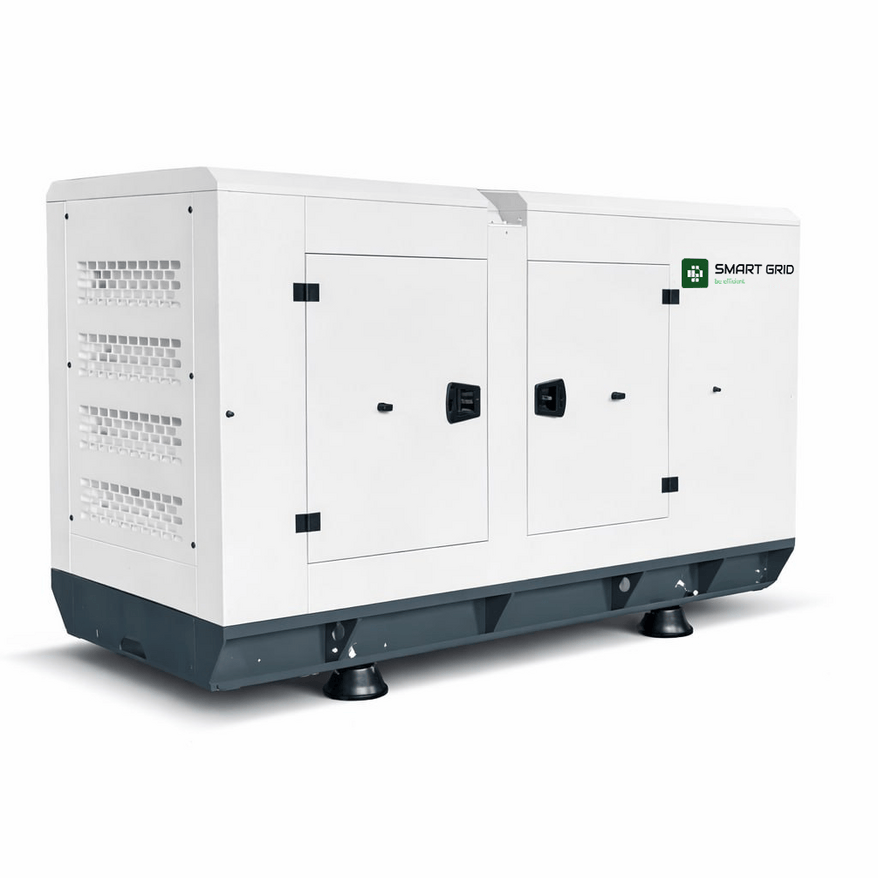

Diesel Generator 165 kVA [120 kW Rated Power] WEICHAI
DG-W190 Diesel Generator Set is a powerful solution for standby and prime power supply of industrial, commercial and production facilities. The generator is equipped with a reliable WEICHAI WP6D152E200 6-cylinder diesel engine and a YHG-120KW alternator.
The generator provides a Prime Power rating of 120 kW / 150 kVA, suitable for continuous operation with variable loads. The Standby Power rating is 132 kW / 165 kVA, designed to supply electrical power during an emergency failure of the main power grid.
The engine has a 6.75-litre displacement, 6 cylinders, electronic control, turbocharging and water cooling. The rated engine speed is 1500 rpm. Fuel consumption at 100% load is 32.9 l/h.
The alternator provides 230/400 V three-phase voltage at 50 Hz, with a power factor of cos φ 0.8, IP23 protection class and 90% efficiency.
The generator set is equipped with a Silent-type protective enclosure, providing basic sound protection, corrosion resistance and concealed exhaust silencer installation. The enclosure is made of galvanized metal and finished with corrosion-resistant powder coating. The integrated fuel tank has a capacity of 250 litres. Overall dimensions in the enclosure are 3110 × 1100 × 1740 mm, with a total weight of 1930 kg.
The control panel provides automatic monitoring of the main generator parameters via an LCD display. It features a multilingual interface, electronic fuel-level indicator, operating and fault log, phase imbalance protection, fuel supply monitoring and engine speed monitoring. Programming and control via USB and RS-232 are supported, as well as connection of an automatic transfer switch ATS.
Available options include a synchronization system, remote monitoring and control via RS485, Ethernet or 2G/3G/4G modem, an enlarged or additional fuel tank, oil heater, automatic fuel filling system, alternator winding heater, mobile platform and other customized configurations.
Warranty: 12 months or 1,000 engine hours, whichever comes first.
Advantages of the WEICHAI 165 kVA Diesel Generator
- Rated power output of 120 kW (165 kVA);
- Reliable industrial-grade WEICHAI diesel engine;
- Low diesel fuel consumption;
- Stable output voltage and frequency;
- High-efficiency brushless synchronous alternator;
- Advanced electronic engine management system;
- Automatic protection against overload, short circuit, overheating, and low oil pressure;
- Compatible with Automatic Transfer Switch (ATS) systems;
- Convenient access to major components for easy maintenance;
- Designed for long-term continuous operation.
Applications
The WEICHAI 165 kVA diesel generator is widely used as a prime or standby power source for manufacturing facilities, warehouses, office buildings, commercial properties, hospitals, hotels, agricultural enterprises, construction sites, telecommunications facilities, automotive service centers, pumping stations, and other locations requiring a dependable electricity supply.
Key Features
- Engine type – WEICHAI diesel engine;
- Rated power – 120 kW (165 kVA);
- Frequency – 50 Hz;
- Three-phase output (380/400 V);
- Electronic engine management system;
- Liquid cooling system;
- Turbocharged engine with charge air cooling;
- Automatic and manual operating modes;
- ATS (Automatic Transfer Switch) compatibility;
- Digital control panel with continuous monitoring of operating parameters.
Why Choose the WEICHAI 165 kVA Diesel Generator?
If you are looking to buy a 165 kVA diesel generator for an industrial facility, commercial building, or manufacturing operation, the WEICHAI 165 kVA (120 kW) is an excellent choice. It combines high performance, fuel efficiency, reliability, and long service life, ensuring a stable and uninterrupted power supply for critical equipment even in demanding operating conditions.
