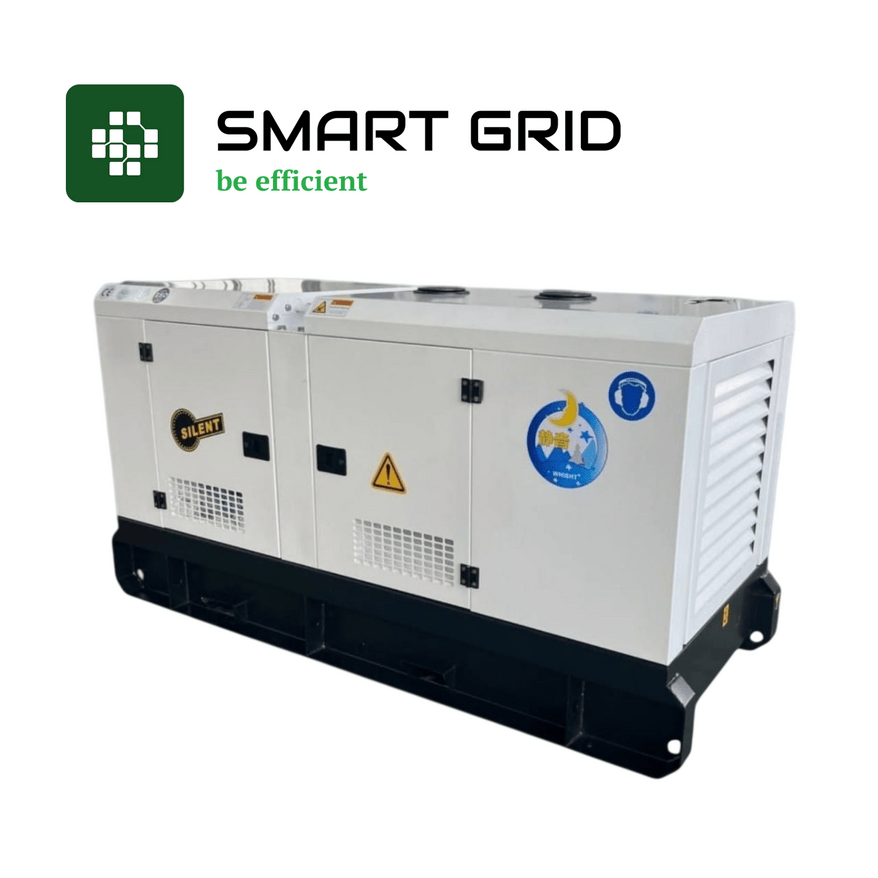

175 kVA diesel generator [120 kW rated power] Cummins

Manufacturer: Smart Grid Code: DG-C175
921118 ₴
The website indicates the approximate cost of the equipment in the basic configuration, subject to 100% prepayment. The final cost is formed individually and depends on the selected configuration, additional options, payment terms, warranty package, the need for delivery, installation and commissioning work.
In stock
Place an order
Buy this item with 1 click
Technical documentation
Delivery
By courier By courier within Ukraine price/free
Pickup Pickup from the warehouse price/free
novaPoshta Via Nova Poshta to the branch at the carrier's rates
Payment
proicons_bank Checking account

Description

Diesel generator 175 kVA [120 kW rated power] Cummins is a powerful industrial-grade energy unit designed for facilities where power supply must remain stable under all conditions. This diesel generator is used as a reliable backup or primary power source, capable of maintaining critical infrastructure even during long-term grid outages.

Cummins engines represent American engineering with a long-standing reputation in industrial diesel solutions. They are known for high service life, confident performance under load, and the ability to withstand intensive operation without losing stability. That is why generator sets based on Cummins engines are often chosen for facilities where power interruptions are not acceptable.

This model is ideally suited for business centers, large office buildings, logistics complexes, retail facilities, production workshops, agricultural enterprises, and medical institutions. It is also widely used in residential complexes, where it ensures the operation of elevators, water supply pump stations, heating systems, ventilation, and emergency lighting. In fact, it can support an entire building’s engineering infrastructure or even a group of facilities.

The 120 kW (175 kVA) power output confidently handles significant loads such as server rooms and IT infrastructure, large-scale HVAC and refrigeration systems, industrial equipment, pumping stations, and security systems. At this level, a diesel generator becomes not just a backup unit, but a core element of the facility’s energy stability.

It is important to note that the diesel generator is designed for long-term continuous operation without interruptions or sudden load fluctuations. It is built for situations where electricity must be available at all times, not only when convenient.

This is a solution for those who need more than just power — they need confidence that the system will not fail at the most critical moment.

Pricing policy

The website indicates the approximate cost of the equipment in the basic configuration, subject to 100% prepayment. The final cost is formed individually and depends on the selected configuration, additional options, payment terms, warranty package, the need for delivery, installation and commissioning work.

Specifications

Manufacturer Smart Grid
Fuel type Diesel
Number of phases 3
Frequency, Hz 50
Rated power, kVA/kW 150/120
Maximum power, kVA/kW 175/140
Engine power, kW 120/132
Fuel consumption (100/75/50%), l/h 30 / 23 / 16
Power factor 0.8
Operating mode Backup
IP rating 23
Overload protection Yes
Short-circuit protection Yes
Warranty period 12 months
Condition New
Pre-start warm-up Yes
ATS input Yes

Engine

Engine brand Cummins
Engine displacement, cc 5900
Engine oil capacity, l 18
Engine speed, rpm 1500
Number of cylinders 6
Engine cooling system Liquid
Coolant volume, l 38

Dimensions

Length, mm 3000
Width, mm 1100
Height, mm 1850
Weight, kg 1570
Fuel tank capacity, l 265
